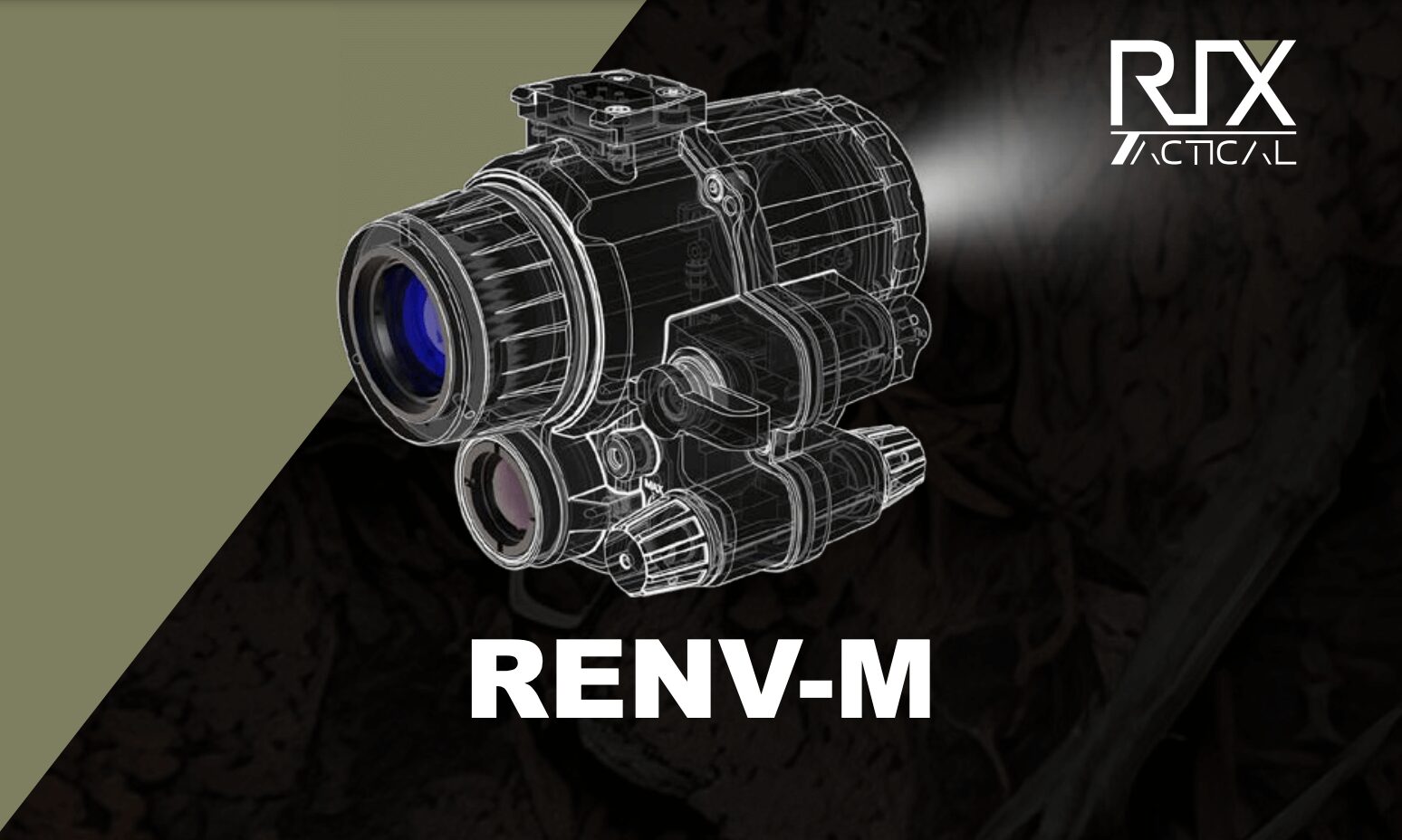

RENV-M Enhanced Night Vision Monocular

RENV-M

Enhanced Night Vision Monocular

Fusion
Technology
640X512
Thermal Sensor
High Quality
I² Tubes
Up to 100 Hours
Operating Time
Light Weight
(0.85lb)
Rapid Target
Acquisition
Multiple Fusion Modes
Switchable

RENV-M Enhanced Night Vision Monocular

CORE CHARACTERISTICS

I² Magnification:

1.0x

I² Lens:

25mm; F1.2

Thermal Sensor:

640 x 512

Thermal Lens:

16mm, F1.1

Warranty:

5 Years

Choose a model

WITHOUT TUBE

1400-1600 FOM WHITE PHOSPHOR

1800-2000 FOM WHITE PHOSPHOR

$4499

Amount of stock: 0

Quantity:

Amount to:$0.00

SELLING POINTS

640x512 Thermal Sensor & High Performance I² Tube Fusion Technology

The RENV-M system seamlessly integrates state-of-the-art image intensification and thermal imaging technology, this advanced fusion system ensures minimal imaging delay, empowering real-time tracking and precise target identification. Its lightweight and compact design, coupled with digital information enhancement algorithms and thermal target display functions, accelerates threat recognition in the most demanding environments.

Multiple Image Modes

The RENV-M features a 0.6-inch full-color OLED display with 800x600 resolution, providing multiple enhanced image modes, each designed for a specific purpose.

Highlight- orange hot

Extra-Long Detection Distance

Using the RENV-M, a 1.8m (5ft, 9in) tall object can be detected up to 1500m (1640 yards) away in complete darkness.

Long Lasting Battery Pack

RIX has significantly boosted the RENV-M‘s energy efficiency. Now, with its double 18650 battery, it can operate for over 8 hours of fusion image display or 100 hours of night vision.

IP67 Waterproof

The RENV-M is fortified with an impressive IP67 waterproof rating, robust protection against water intrusion.

Rapid Switching Between Left & Right Eyes

The RENV-M allows for quick switching between the left and right eyes or fine adjustments to the monocular lateral position.

More Features

BSP
Highlight Cut-Off

Illuminator
Infrared

-40 to 122 °F
Temperature

IP67
Waterproof

Azimuth
Indication

Pitch
Inclination

Easy
To Use

800×600
OLED Display

PRODUCT PARAMETERS

Specs

Optics - Magnifacation, ×

Optics - Exit Pupil Diameter, mm

Optics - Exit Pupil Distance, mm

Optics - Adjustment, D

-3.5~+2.5

I² - Generation

Gen 2+

I² - Resolution, lp/mm

64-72

I² - FOV, °

I² - Lens System, mm

f/1.2, 25

I² - Range of Focus, yd

0.27 to infinity

I² - Brightness Control

Yes

I² - Bright source protection

Yes

I² - Infrared Illuminator

Built-in

Thermal Image - Type

VOx Uncooled

Thermal Image - Resolution, pixels

640×512

Thermal Image - Pixel pitch, μm

Thermal Image - NETD, mK

＜30

Thermal Image - Frame Rate, Hz

Thermal Image - Lens System, mm

f/1.1, 16

Thermal Image - FOV, °

25.8×19.1

Thermal Image - Digital Zoom

Yes

Thermal Image - Brightness Control

Yes

Thermal Image - Contrast Control

Yes

Thermal Image - Polarity

White hot, Black hot, Orange hot

Enhanced - Mode

Outline, Highlight, Thermal image, Breath

Sensor - Azimuth Indication

Yes

Sensor - Pitch/Inclination angle

Yes

Display - Type

OLED

Display - Resolution, pixels

800×600

Range Performance - Detection Range, m/yd

1500m/1640yd

Degree of Protection, lP code

IP67

Operating Temperature Range, °F

-40 to 122

Battery Type

18650×2

Operating Time on Battery Pack (at t=72°F) , h

Enhanced Display ≥ 8 hours，I² up to 100 hours

Dimensions, inch

4.2×3.4×2.9

Weight, lb

Main body≤0.85，Battery pack≤0.19 (without battery)

FULL SPECIFICATION

COLLAPSE

DOWNLOAD

RENV-M User Manual
