RENV-C Thermal Clip-On

CORE CHARACTERISTICS
Magnification:
1.0x
Detector:
640×512-12μm
FOV:
35°×30°
Recognition Distance:
275m(Target size: 1.7m×0.5m, P(n)=99%)
Warranty:
5 Years
$4169
Amount of stock: 0
Quantity:

Amount to:$0.00
Contact Us

SELLING POINTS

SELLING POINTS
PRODUCT OVERVIEW

The RENV-C is a lightweight, convenient, and easy-to-use infrared thermal clip-on device. It rapidly enhances night vision devices with thermal imaging capabilities. Mounted externally using a bracket, it allows for quick disassembly and requires no calibration for straightforward use.

PRODUCT OVERVIEW
PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW PRODUCT OVERVIEW
DUAL POWER SUPPLY BATTERY PACK
DUAL POWER SUPPLY BATTERY PACK

The RENV-C can be powered via a double-ended cable that connects to the same battery pack used by the RNV-31S, significantly extending operating time.

QUICK-FUSION IMAGING & MULTIPLE IMAGING MODES
QUICK-FUSION IMAGING & MULTIPLE IMAGING MODES

The RENV-C can be swiftly integrated with night vision devices to provide fused images. It offers multiple imaging modes to accommodate various scenarios and user needs.

QUICK-FUSION IMAGING & MULTIPLE IMAGING MODES

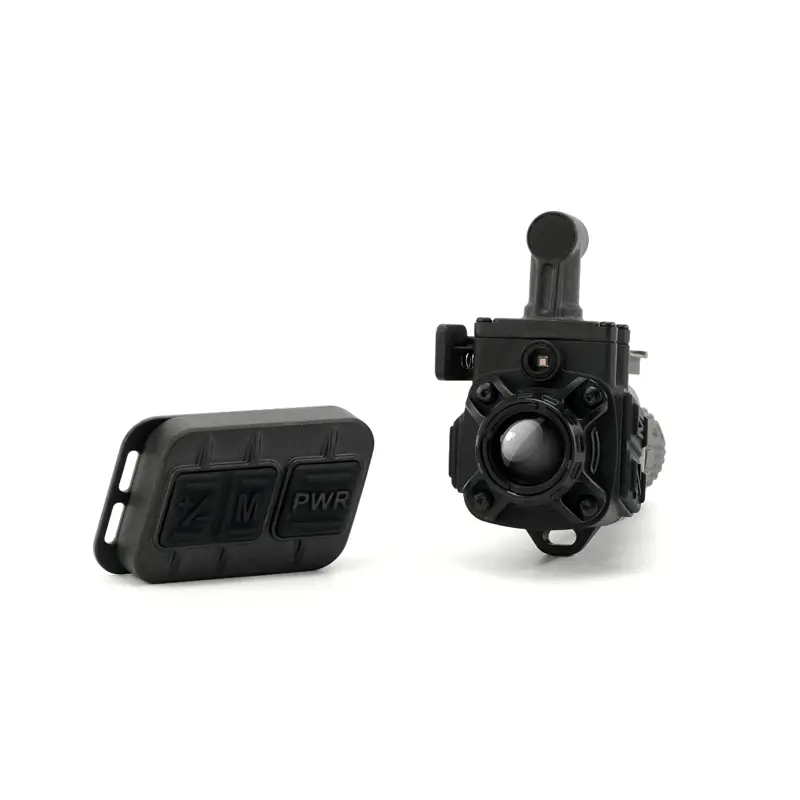

BLUETOOTH REMOTE CONTROL
BLUETOOTH REMOTE CONTROL

The Bluetooth remote control enables wireless operation of the RENV-C within a certain range, allowing users to control the device without direct contact. This feature greatly enhances ease of use.

BLUETOOTH REMOTE CONTROL
GPS & DIGITAL MAGNETIC COMPASS
GPS & DIGITAL MAGNETIC COMPASS

The RENV-C is equipped with an electronic compass and GPS positioning system to prevent disorientation in the field and offer users robust navigation assistance.

GPS & DIGITAL MAGNETIC COMPASS

PRODUCT PARAMETERS

Specs

Detector
640×512-12μm
Aperture
F / 1.0
Magnification
FOV(H x V)
35°×30°
Recognition Distance
275m(Target size: 1.7m×0.5m, P(n)=99%)
Image modes
Highlight / Outline / Breath
Automatic Control
ABC , Automatic Shutdown , Auto Standby
Bluetooth Remote Control
2.4Ghz
Compass
Electronic Compass (degree)
Power
1×CR123A Battery (Optional Battery Pack)
Battery Life(22°C)
3 Hours (1×CR123A),12 hours(Battery Pack)
Compatible
PVS-14 (RNVG,DTNVS,1431), L3Harris BNVD (PVS-31A,GPNVG)
Minimum Fusion Distance
10m
Operating Temperature
-40°C (-40°F) to +60°C (140°F)
Weight
77g / 2.65 oz(w/ Battery),62g / 2.12 oz(w/o Battery)
Dimension
86mm/3.4"(L)×65mm/2.6"(W) × 40mm/1.6"(H)
Waterproof
1.5m for 0.5 Hour
PRODUCT PARAMETERS
FULL SPECIFICATION
COLLAPSE

DOWNLOAD

RENV-C User Manual
PDF DOWNLOAD
